KX MTB 26 Wheels are produced here at Bob Elliot HQ Using machinery we prepare the hubs using reliable, economical and good quality componentry and lace the wheels before finishing them to precise tolerances using robots to deliver the perfect wheel every time.KX Wheelsare quality controlled before being finalised using over 50 years' joint experience in wheel-building.

Own built here at Bob Elliot HQ

Using componentry from all around the World

Over 50 years' joint wheel building experience

All wheels are finished to a very high quality

Front Wheel Features-

Rim
- External diameter: 28mm
- Internal diameter: 21mm
- Rim depth: 20mm

Front Hub
- 36H 6-bolt
- Q/R axle: 100mm

Wheel Weight – 1.124kg

Spoke Length – 255mm / 257mm

*Wheel weights are approximate

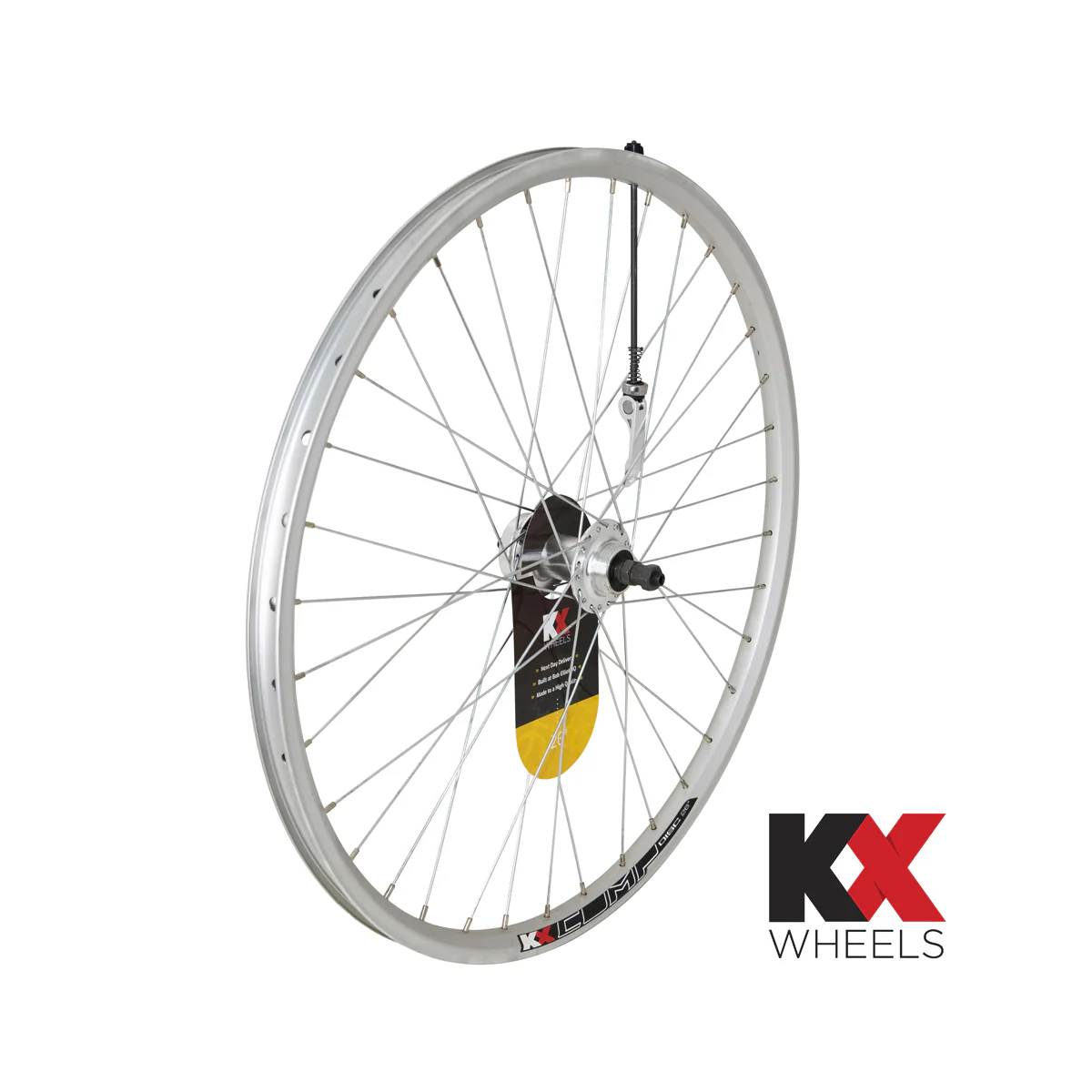

Screw On Freewheel Rear Wheel -

Wheel Features

Rim
- External diameter: 28mm
- Internal diameter: 21mm
- Rim depth: 20mm

Rear hub
- 36H 6-bolt
- Screw on freewheel
- Q/R axle: 135mm

Wheel Weight – 1.204kg

Spoke Length – 255mm / 257mm

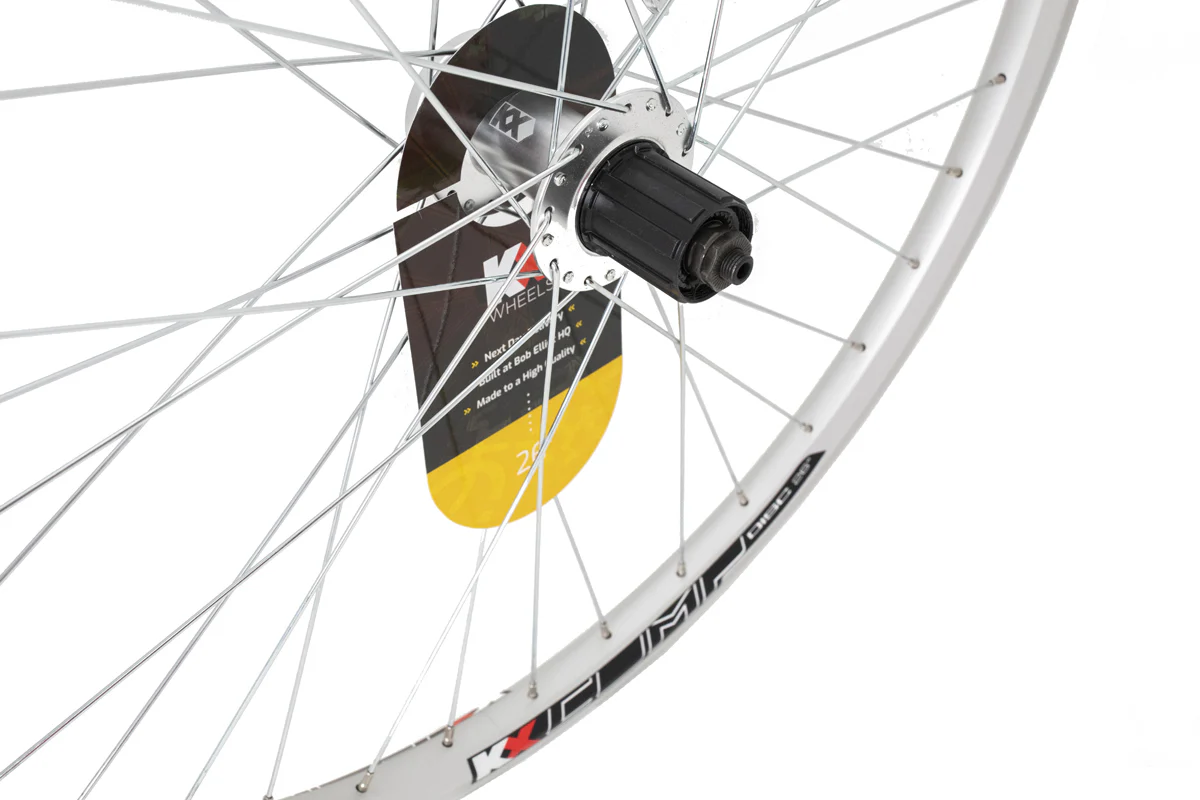

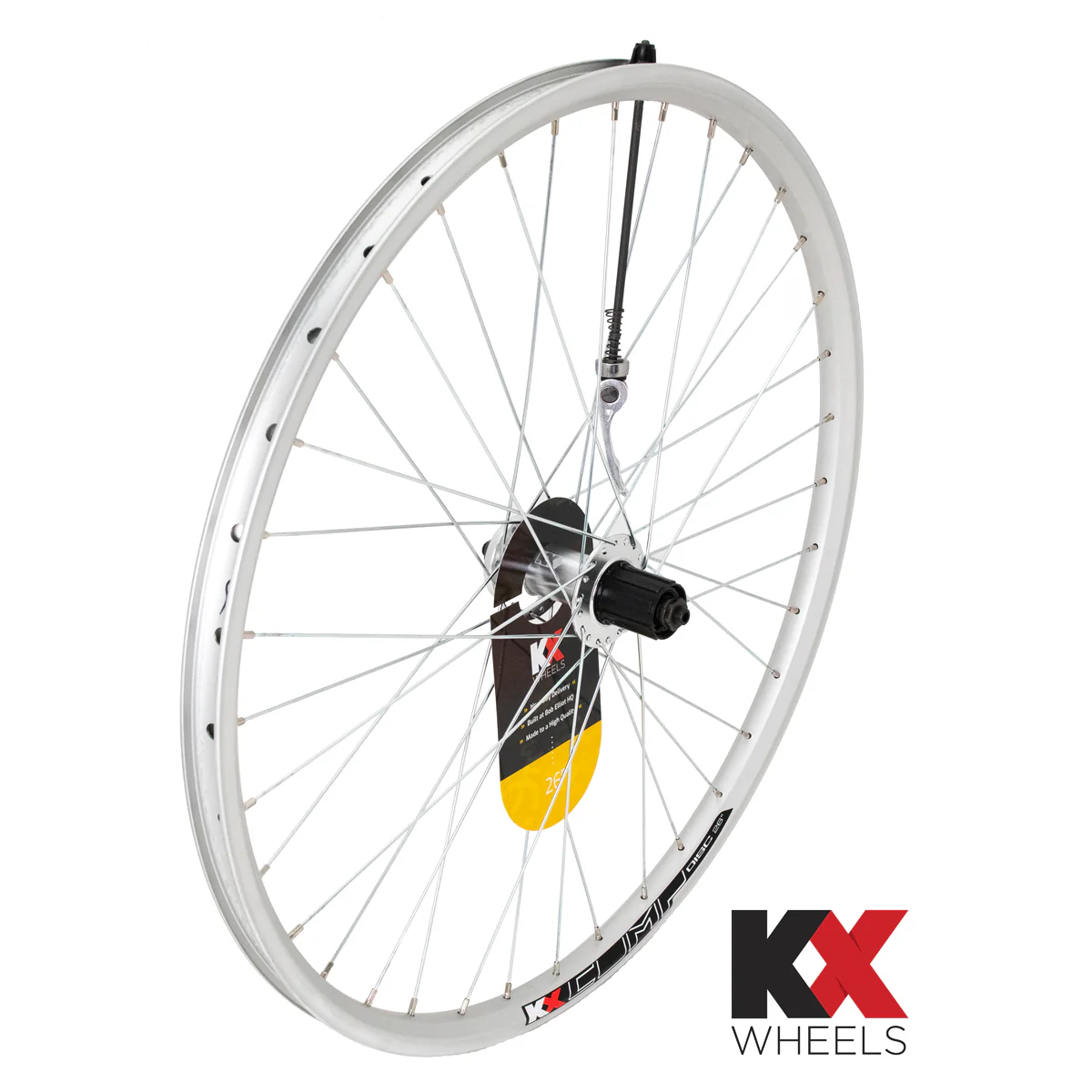

Cassette Rear Wheel Features-

Rim
- External diameter: 28mm
- Internal diameter: 21mm
- Rim depth: 20mm

Rear hub
- 36H 6-bolt
- Cassette
- Q/R axle: 135mm
- MTB Cassette: 8-11 speed

Wheel Weight – 1.322kg

Spoke Length – 255mm / 257mm
